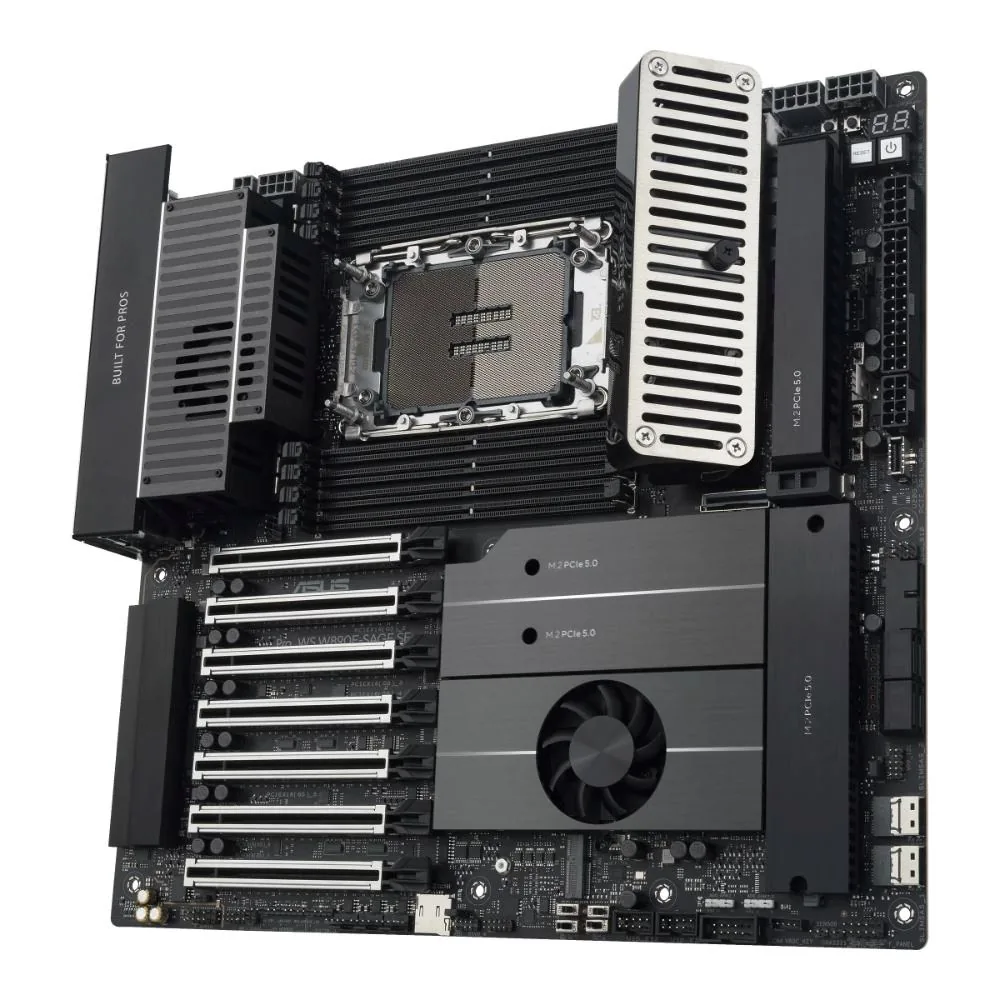

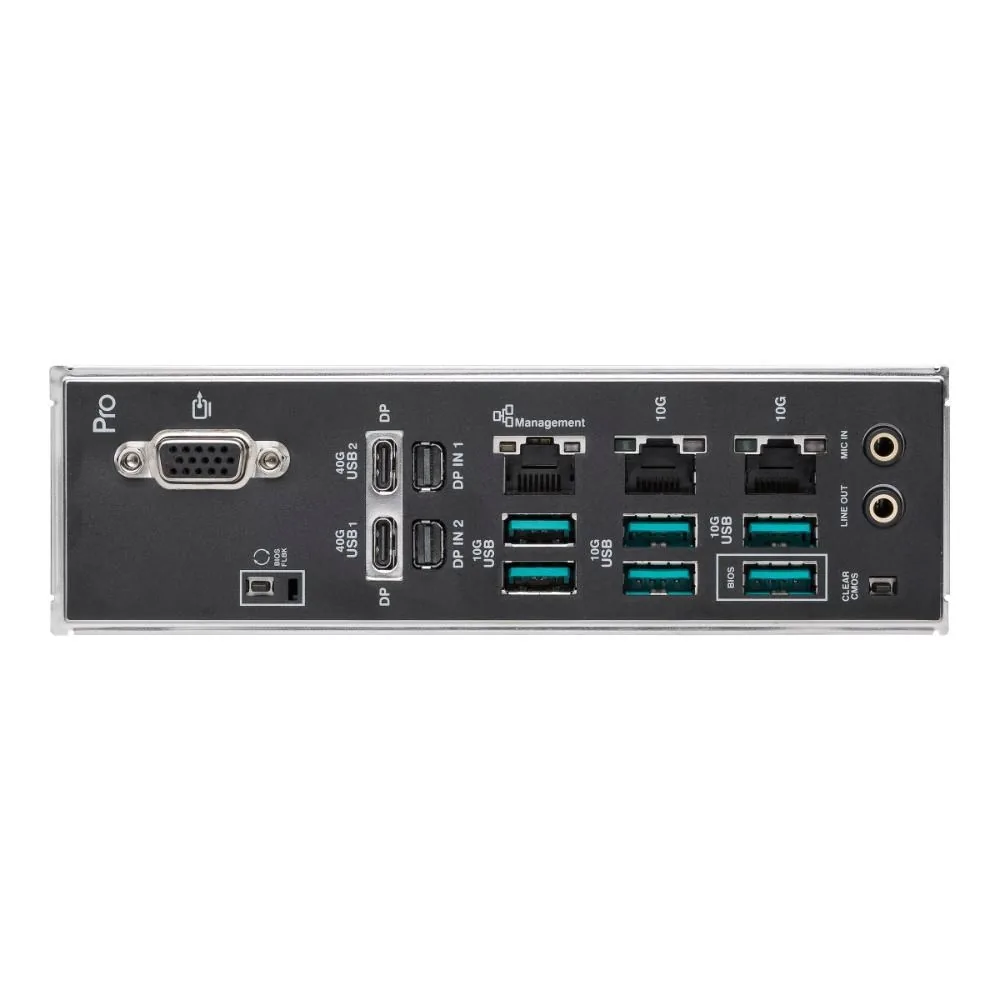

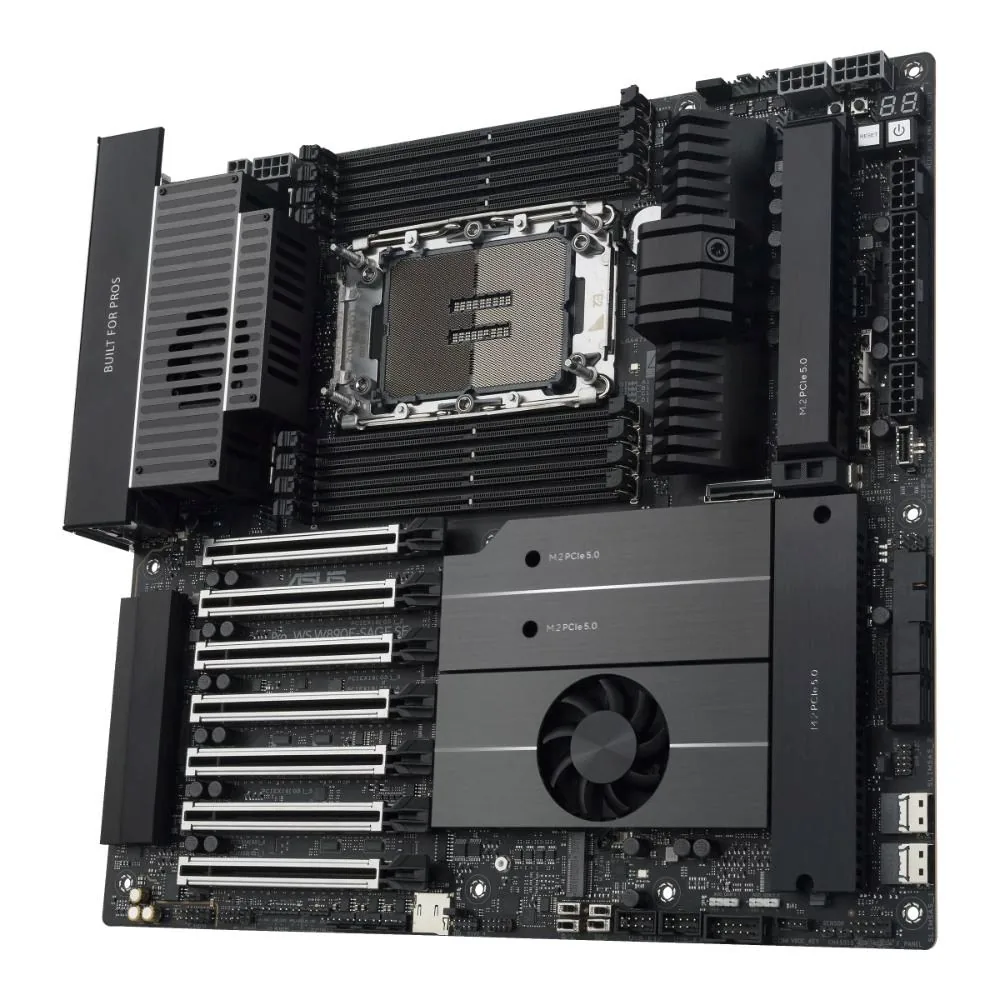

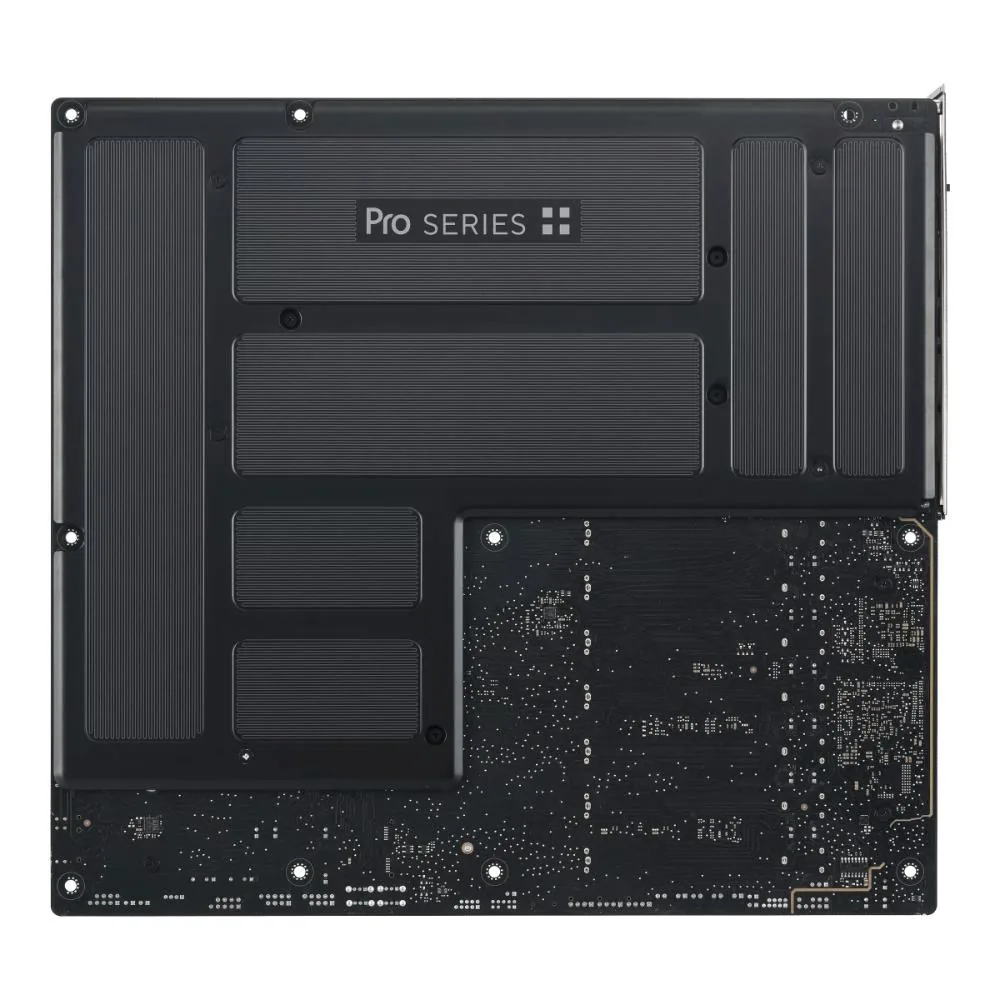

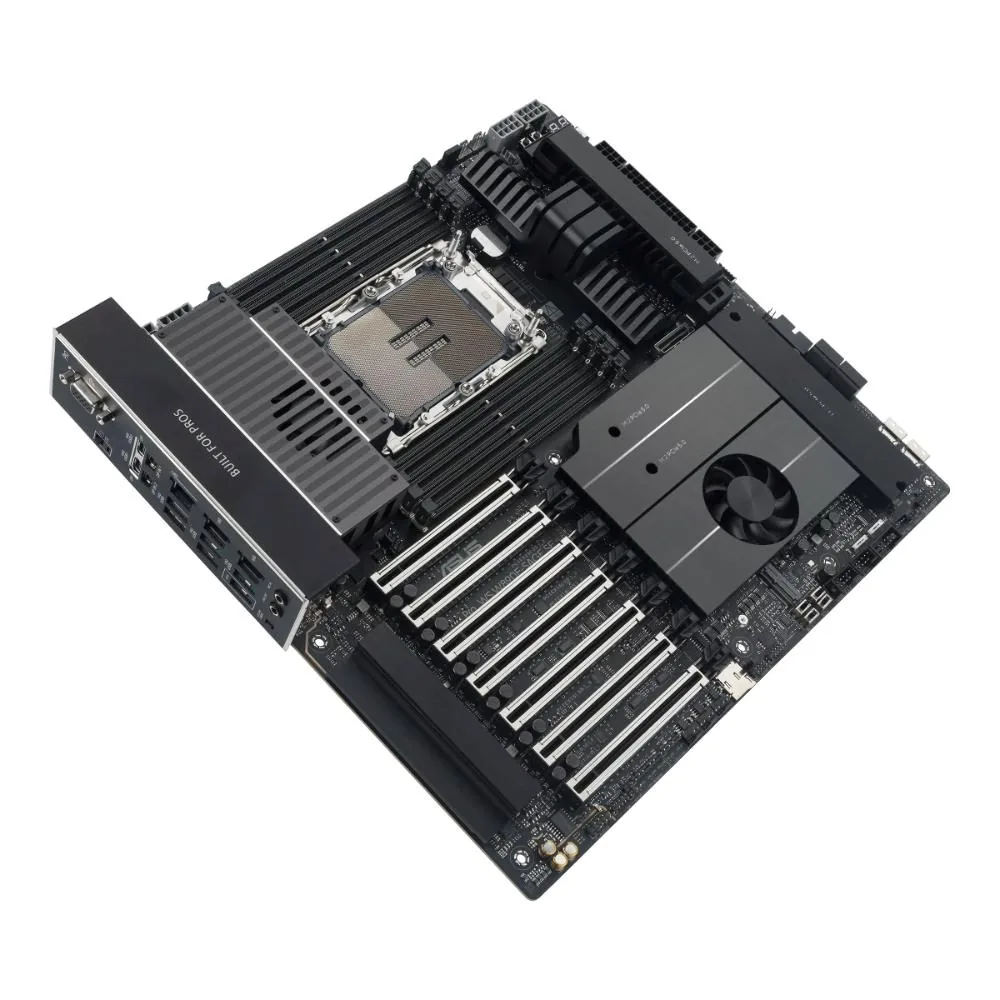

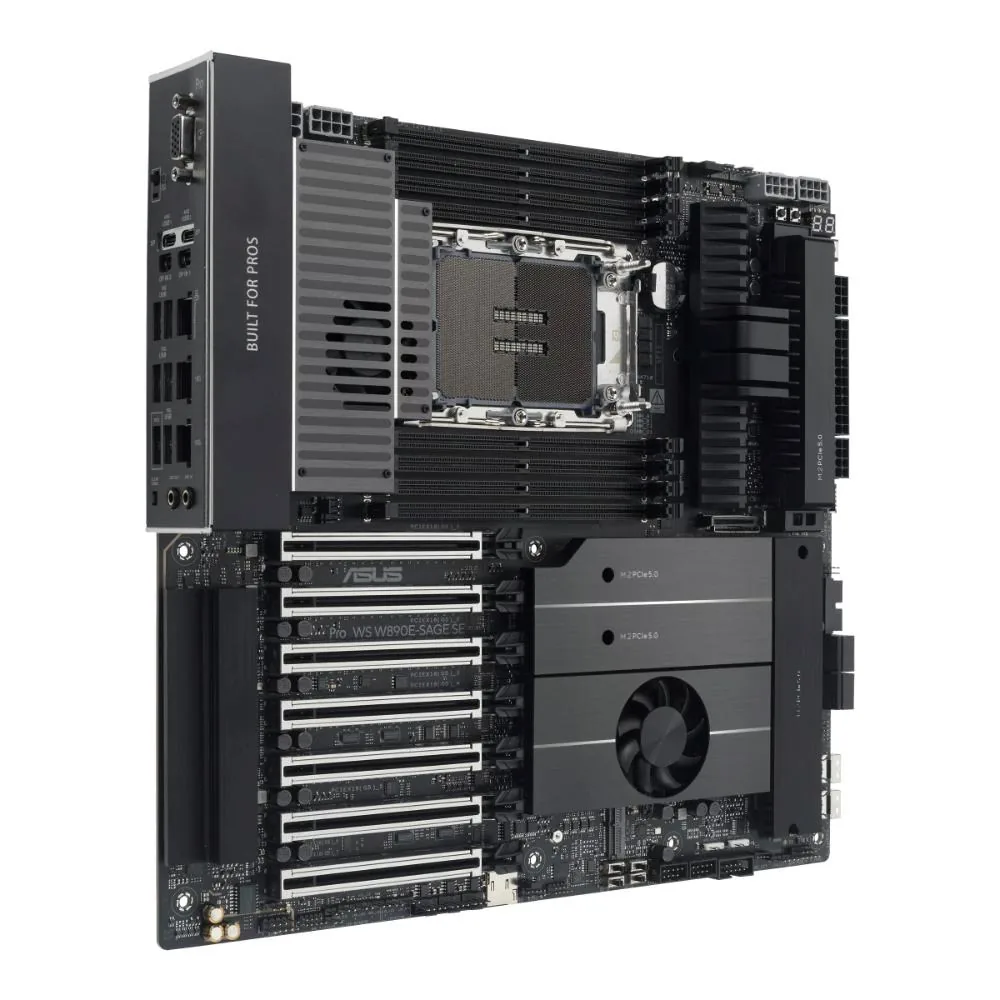

ASUS Pro WS W890E-SAGE SEReady for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applicationsIntel LGA4710-2 socket supports up to 86-core CPUs: Ready for Intel Xeon 600 Processors for Workstation.Ultrafast connectivity: Seven PCIe 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, a MCIO connector, two rear USB4 40Gbps Type-C, and SlimSAS NVMe support.CPU and memory overclocking: Support for up to 4TB ECC R-DIMM DDR5 memory modules (1DPC).Robust power and thermal design: 16+2+2+1+2 power stages for the CPU and ready for dual-PSU operation, massive VRM, chipset and M.2 heatsinks with active fans, AngleBoost Fan Kit for DDR5, and M.2 thermal pad.Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management.Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24 7 operation.ModelPro WS W890E-SAGE SENews & UpdatesLGA4710-2CPUIntel Socket LGA4710-2 for Xeon 600 Processors for WorkstationSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*** Refer to https: www.asus.com support download-center for CPU support list.** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.ChipsetIntel W890 ChipsetMemory8 x DIMM slots, DDR5, ECC Registered DIMM (RDIMM), 3DS-RDIMM, and Multiplexed Combined Rank DIMM (MRDIMM)*8-channel memory architectureSupports Intel Extreme Memory Profile (XMP) memory module* Only channels A, C, E, and G will function when an Intel Xeon 630 Series Processor is in use.** Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU Memory Support list under the Support tab of product information site or visit https: www.asus.com support download-center .Graphics1 x VGA port from AST26002 x USB 40Gbps (USB4) ports support USB Type-C display outputs** Supports max. 8K@60Hz as specified in DisplayPort 1.4.** Output at USB4 Type-C ports requires Mini DisplayPort IN to DisplayPort adapter cable.*** The display function depends on CPU or GPU.Expansion SlotsIntel Xeon 690 670 650 Series Processors*7 x PCIe 5.0 slot(s)Intel Xeon 630 Series Processor*7 x PCIe 5.0 slot(s)* Specifications vary by CPU types.StorageTotal supports 4 x M.2 slots, 2 x SlimSAS ports, 1 x MCIO connector, and 4 x SATA 6Gb s portsM.2 slots support PCIe 5.0SlimSAS supports PCIe 4.0Supports Intel VROC and VMDEthernet1 x Intel dual 10Gb Ethernet1 x Realtek 1Gb EthernetASUS LANGuardWireless & BluetoothM.2 slot only (Wi-Fi module sold separately)USBRear USB: 2 x USB4, 6 x USB 10GbpsFront USB: USB-C, USB 5Gbps, USB 2.0 headersAudioRealtek ALC1220P 7.1 Surround SoundHigh quality playback and recording* 32-Bit 192 kHz not supported for 7.1Back Panel I O PortsUSB4, USB 10Gbps, VGA, LAN, Audio jacks, BIOS FlashBack™Internal I O ConnectorsFan headers, power connectors, storage connectors, USB headersRGB headers, buttons, sensorsSpecial FeaturesASUS 5X PROTECTION IIIASUS Q-DesignASUS Thermal SolutionASUS EZ DIYAura SyncSoftware FeaturesArmoury Crate, ASUS DriverHub, WinRAR, Norton 360UEFI BIOS utilitiesRemote Management FeaturesASUS Control Center Express (ACCE)BMC RelatedSwitches, LEDs, microSD, monitoring featuresBIOS512Mb Flash ROM, UEFI AMI BIOSManageabilityWOL by PME, PXEAccessoriesSATA cables, thermistor cable, adaptersOperating SystemWindows 11Form FactorEEB Form Factor12 inch x 13 inch (30.5 cm x 33 cm)
