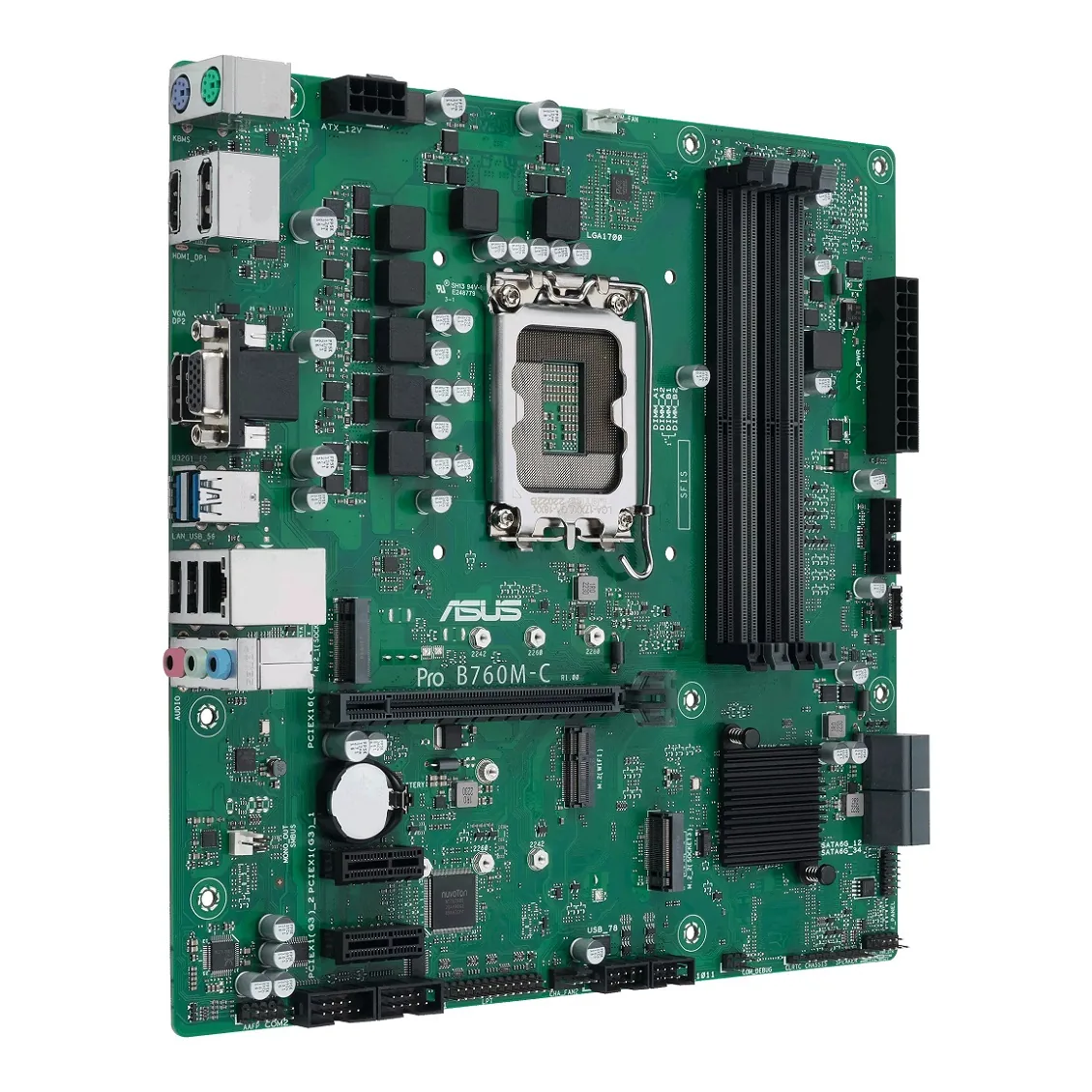

ASUS Pro B760M-C-CSMASUS CSM program: stabilní dodávka základních desek, upozornění na konec životnosti a IT software pro firemní základní desky* firemní základní deska Micro-ATX B760 s vylepšeným zabezpečením, spolehlivostí, ovladatelností a servisovatelnostíChipset: Intel® B760Rozměrový formát: mATX (244x244mm)Podpora pro procesory: 13 Gen Intel® Core™ & 12 Gen Intel® Core™, Pentium® Gold a Celeron® & 14 Gen Intel® Core™Patice procesoru: LGA1700Paměť: * 4x DIMM, Max. 128GB, DDR5 6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800 bez ECC, bez vyrovnávací paměti * dvoukanálová architektura paměti* podporuje Intel® Extreme Memory Profile (XMP)* OptiMem IIGrafické výstupy: * 2x DisplayPort 1.4* 1x VGA* 1x HDMI® 2.1Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC - podporuje přehrávání až 24-bit/192kHzEthernet: 1x Intel® 1Gb EthernetWLAN + Bluetooth: pouze slot M.2 (Key E, CNVi & PCIe)Rozšiřující sloty: * 1x PCIe 4.0/3.0 x16* 2x PCIe 3.0 x1RAID řadič: Intel® Rapid Storage Technology podporuje SATA RAID 0/1/5/10Úložný prostor: celkem podporuje 2 sloty M.2 a 4 porty SATA 6Gb/s* 1x M.2_1 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4)* 1x M.2_2 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4)* 4x port SATA 6Gb/sUSB: Zadní USB (celkem 4 portů)* 2x USB 3.2 Gen 1 (2x typ-A)* 2x USB 2.0 (2x typ-A)Přední USB (celkem 7 portů)* 1x USB 3.2 Gen 1 konektor - podpora USB-C®* 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1* 2x USB 2.0 header - podpora dalších 4 portů USB 2.0Porty na zadním panelu: * 2x USB 3.2 Gen 1 (2x typ-A)* 2x USB 2.0 (2x typ-A)* 2x DisplayPort* 1x HDMI®* 1x VGA* 1x Intel® 1Gb Ethernet* 3x audio jack* 2x PS/2 (1x fialový klávesnice + 1x zelený myš)Interní porty: Související s ventilátorem a chlazením* 1x 4-pin CPU Fan header* 2x 4-pin Chassis Fan headersNapájení* 1x 24-pin hlavní napájecí konektor* 1x 8-pin +12V napájecí konektorSouvisející s úložištěm* 2x M.2 slot (Key M)* 4x SATA 6Gb/s portUSB* 1x USB 3.2 Gen 1 konektor - podpora USB-C®* 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1* 2x USB 2.0 header - podpora dalších 4 portů USB 2.0Ostatní* 1x Clear CMOS header* 1x Chassis Intrude header* 2x COM Port header* 1x Front Panel Audio header (AAFP)* 1x COM debug header* 1x LPT header* 1x Mono-out header (with Amp IC)* 1x M.2 slot (Key E)* 1x SMBUS header* 1x Speaker header* 1x SPI TPM header (14-1pin)* 1x 10-1pin System Panel headerBIOS: 128Mb Flash ROMPříslušenství: * 2x SATA 6Gb/s kabel* 1x I/O záslepka* 1x balení šroubů pro M.2 Key E* 1x balení šroubků pro M.2 SSD* 1x ACC Express Activation Key Card* 1x uživatelská příručka Odkaz na stránky výrobce: https://www.asus.com/motherboards-components/motherboards/business/pro-b760m-c-csm/

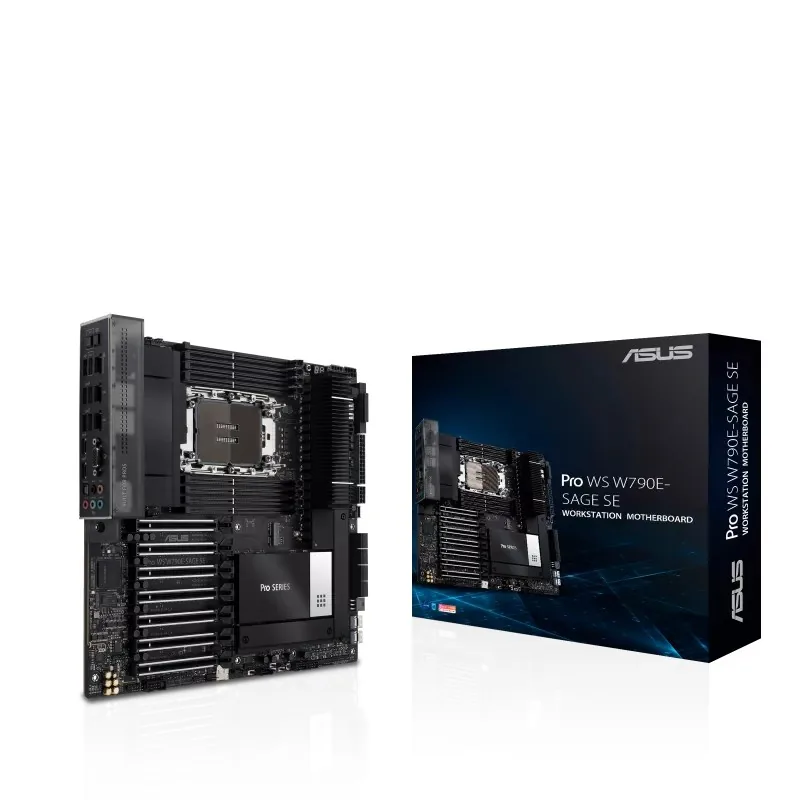

ASUS Pro WS W790E-SAGE SEReady for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applicationsIntel LGA 4677 socket: Ready for Intel Xeon W-3400 & W-2400 processorsCPU and memory overclocking: Supports for up to 2TB of ECC R-DIMM DDR5 memory (1DPC)Ultrafast connectivity: 7 PCIe 5.0 x16 slots, Dual Intel X710-AT2 10G LAN, 3 M.2, USB 3.2 Gen 2x2 Type-C and 2 SlimSASServer-grade IPMI remote management: Hardware and software-level with a dedicated LAN port link to AST2600 BMC controller, plus a real-time monitoring and management software – ASUS Control Center ExpressRobust power and thermal design: 14+1+1 power stages, 8-pin and 6-pin PCIe power connectors, Massive VRM, chipset, M.2 heatsinks and M.2 backplatesTrusted stability: Highly compatible with the latest technologies with solid QVL list and tested for 24 7 operation, validated for extensive compatibilityCPUIntel Socket LGA4677 for Xeon W-3400 and W-2400 Series Processors*Supports Intel Turbo Boost Max Technology 3.0* Refer to www.asus.com for CPU support list.ChipsetIntel W790 ChipsetMemory8 x DIMM slots, Max. 2048GB, DDR56800(OC) 6600(OC) 6400(OC) 6200(OC) 6000(OC) 5800(OC) 5600(OC) 5400(OC) 5200(OC) 5000(OC) 4800 ECC Registered Memory*8-Channel Memory ArchitectureSupports Intel Extreme Memory Profile (XMP)* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration.Graphics1 x VGA port from AST2600Expansion SlotsIntel Xeon W-3400 Series Processors*7 x PCIe 5.0 slots (x16 x16 x16 x16 x16 x8 x16)Intel Xeon W-2400 Series Processors*4 x PCIe 5.0 slots (x16 x16 x16 x16)* Please check the PCIe bifurcation table on the support site.** Please refer to the block diagrams in the Appendix for more details.StorageTotal supports 3 x M.2 slots, 2 x SlimSAS slots and 8 x SATA 6Gb s portsIntel Xeon W-3400 Series ProcessorsM.2_1 slot (Key M), type 2242 2260 2280 22110 (PCIe 5.0 x4)M.2_2 slot (Key M), type 2242 2260 2280 22110 (PCIe 5.0 x4)Intel W790 ChipsetM.2_3 slot (Key M), type 2242 2260 2280 22110 (PCIe 4.0 x4)SlimSAS_1 supports PCIe 4.0 x4 NVMeSlimSAS_2 supports PCIe 4.0 x4 NVMe8 x SATA 6Gb s portsEthernet1 x Intel dual 10Gb Ethernet1 x Realtek 1Gb EthernetASUS LANGuardUSBRear USB (Total 8 ports)1 x USB 3.2 Gen 2x2 (USB Type-C)5 x USB 3.2 Gen 2 (4 x Type-A + 1 x Type-C)2 x USB 2.0 (Type-A)Front USB (Total 7 ports)1 x USB 3.2 Gen 2 connector (Type-C)1 x USB 3.2 Gen 1 header (2 ports)2 x USB 2.0 headers (4 ports)AudioRealtek S1220A 7.1 Surround Sound High Definition Audio CODECImpedance sense for front and rear headphone outputsInternal amplifier for headphones and speakersSupports jack-detection, multi-streaming, front panel jack-retasking120 dB SNR playback 113 dB SNR recordingSupports up to 32-Bit 192 kHz playbackBack Panel I O Ports1 x USB 3.2 Gen 2x2 (Type-C)5 x USB 3.2 Gen 2 (Type-A + Type-C)2 x USB 2.01 x VGA port2 x Intel 10Gb Ethernet1 x Realtek 1Gb Ethernet5 x Audio jacks1 x Optical S PDIF out1 x BIOS FlashBack™ button1 x Clear CMOS buttonInternal I O Connectors1 x CPU Fan header1 x CPU OPT Fan header5 x Chassis Fan headers1 x W_PUMP+ header2 x 24-pin Main Power connectors4 x 8-pin +12V Power connectors1 x 8-pin PCIe Power connector1 x 6-pin PCIe Power connector3 x M.2 slots2 x SlimSAS connectors8 x SATA portsUSB headers and additional internal connectorsSpecial FeaturesExtreme OC KitASUS 5X PROTECTION IIIASUS Q-DesignASUS Thermal SolutionASUS EZ DIY24 7 reliability and overcurrent protectionSoftware FeaturesArmoury CrateAI Suite 3ASUS CPU-ZASUS Control Center ExpressAdobe Creative Cloud (trial)Norton 360 Deluxe (trial)WinRARUEFI BIOS toolsBIOS512 Mb Flash ROM, UEFI AMI BIOSManageabilityWOL by PME, PXE (UEFI mode)Accessories4 x SATA cablesThermistor cable packMounting and M.2 accessoriesDocumentationOperating SystemWindows 11, Windows 10 64-bitForm FactorEEB Form Factor12 inch x 13 inch (30.5 cm x 33 cm)

Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options. MBD-X9SBAA-F -O ##X9SBAA-F (Retail Pack) MBD-X9SBAA-F -B ##X9SBAA-F (Bulk Pack)Physical Stats Form Factor ##Mini-ITX Dimensions ##6.7" x 6.7" (17cm x 17cm) Processor/Cache CPU ##Intel® Atom™ S1260 (Centerton)##System-on-Chip##2.0GHz##2C/4T, 64-bit, VT-x, HT System Memory Memory Capacity ##1x 204-pin DDR3 SO-DIMM socket##Supports up to 8GB DDR3 ECC memory Memory Type ##1333/1066/800MHz ECC DDR3 SDRAM, 204-pin gold-plated DIMMs DIMM Sizes ##8GB, 4GB, 2GB Memory Voltage ##1.5 V, 1.35 V On-Board Devices SATA ##Marvell 88SE9230##SATA 3.0 (6Gb/s)##Raid 0,1 support (Windows Only) Network Controllers ##Intel i350AM2 Gigabit Ethernet##Virtual Machine Device Queues reduce I/O overhead##Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output##1x Realtek RTL8201N PHY (dedicated IPMI)s USB ##Renesas uPD720201 IPMI ##Nuvoton WPCM450 BMC Video ##Matrox G200eW Input / Output Serial ATA ##4x SATA 3.0 ports LAN ##2x RJ45 Gigabit Ethernet LAN ports##1x RJ45 Dedicated IPMI LAN port USB ##2x USB 3.0 ports Serial Port ##2 Fast UART 16550 Serial Port (1 via header and 1 at rear) DOM ##DOM power connector support (Disk on Module) VGA ##1x VGA Port Others ##TPM header Chassis (Optimized for X9SBAA-F) 1U Chassis ## CSE-504-203B SuperServer(s) with X9SBAA-F Model(s) ## SYS-5017A-EFExpansion Slots PCI ##1x 32-bit PCI slot (3.3V) System BIOS BIOS Type ##64Mb SPI Flash EEPROM with AMI UEFI BIOS BIOS Features ##Plug and Play (PnP)##DMI 2.3##PCI 2.3 ##ACPI 1.0 / 2.0 / 3.0 / 4.0##USB Keyboard support##SMBIOS 2.7.1##UEFI Management Software ##SuperDoctor® III##Watch Dog##NMI Power Configurations ##ACPI / ACPM Power Management##Main Switch Override Mechanism PC Health Monitoring Voltage ##Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages. FAN ##Total of 3x 4-pin fan headers##3x fans with tachometer status monitoring##Status monitor for speed control##Status monitor for on/off control##Low noise fan speed control##Pulse Width Modulated (PWM) fan connectors Temperature ##Monitoring for CPU and chassis environment##CPU thermal trip support LED ##System Overheat LED Other Features ##Chassis intrusion detection##Chassis intrusion header

SUPERMICRO 1U passive heatsink s1156

Product SKUs MBD-X11SCQ X11SCQPhysical Stats Form Factor uATX Dimensions 9.6" x 9.6" (24.38cm x 24.38cm) Processor/Cache CPU 8th/9th Generation Intel® Core? i9/Core? i7/Core?i5/Core?i3/Pentium®/Celeron® ProcessorSingle Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP System Memory Memory Capacity Up to 64GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots Memory Type 2666/2400/2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit 288-pin UDIMM DIMM Sizes 4GB, 8GB, 16GB Memory Voltage 1.2V On-Board Devices Chipset Intel® Q370 SATA Intel® Q370 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Network Controllers Single LAN with Intel® Ethernet Controller I210-ATSingle LAN with Intel® PHY I219LM LAN controller Audio 7.1 HD Audio Graphics Intel® HD Graphics3 Independent Displays Input / Output LAN 2 RJ45 Gigabit Ethernet LAN ports USB 6 USB 2.0 ports (2 rear + 4 via headers)6 USB 3.1 ports (4 rears (2 Type A + 2 Type C) + 2 via headers Video Output 1 DVI - D port, 1 HDMI port, 1 DP (DisplayPort) port, 1 eDP (Embedded DisplayPort) port,3 Independent Displays Serial Port / Header 6 COM Ports (6 headers)TPM TPM Header & Chip bothExpansion Slots PCI-E 1 PCI-E 3.0 x16,1 PCI-E 3.0 x1,2 PCI-E 3.0 x4 M.2 M.2 Interface: 1 PCI-E 3.0 x4Form Factor: 2242/2280/22110Key: M-Key System BIOS BIOS Type AMI UEFI BIOS Features ACPI 6.1SMBIOS 3.1PCI FW 3.0UEFI 2.6RTC (Real Time Clock) Wakeup Management Software AMT, NMI, SuperDoctor® 5, vPro, Watchdog Power Configurations ATX Power connectorACPI Power Management PC Health Monitoring Voltage +12V, +3.3V, +5V, 1.2V (VDIMM), 4 fans with tachometer monitoring, Chassis intrusion header, Memory Voltages, Monitors CPU voltages, System temperature, VBAT FAN 4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer monitoring Temperature CPU thermal trip support, Monitoring for CPU and chassis environment LED Power LED Other Features ACPI power management, ATX Power connector, Chassis intrusion header, M.2 NGFF connector, RoHS Operating Environment Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F) Non-Operating Temperature Range -40°C - 85°C (-40°F - 185°F) Operating Relative Humidity Range 10% ~ 85% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing)

Product SKUs MBD-X11SCA X11SCAPhysical Stats Form Factor ATX Dimensions 12" x 9.6" (30.48cm x 24.38cm) Processor/Cache CPU 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 ProcessorSingle Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP System Memory Memory Capacity Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots Memory Type 2666/2400/2133/1866/1600MHz ECC/Non-ECC DDR4 SDRAM 72-bit 288-pin UDIMM DIMM Sizes 1GB, 2GB, 4GB, 8GB, 16GB, 32GB Memory Voltage 1.2V *Future support for 128GB via a BIOS update On-Board Devices Chipset Intel® C246 SATA Intel® C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Network Controllers Single LAN with Intel® Ethernet Controller I210-ATSingle LAN with Intel® PHY I219LM LAN controllerSupport vPro Audio ALC 888S HD Audio Graphics Intel UHD P630 graphic(For CPU Xeon E-21XXG/E-22XXG series only) Input / Output LAN 2 1GbE LAN ports USB 2 USB 2.0 ports (2 via headers)4 USB 3.1 Gen1 ports (2 Rears Type A, 2 via headers)4 USB 3.1 Gen2 ports (1 Rear Type A + 1 Rear Type C, 1 via header, 1 Type A) Video Output 1 HDMI port, 1 DVI - D port, 1 DP (DisplayPort) port,Intel UHD P630 graphic(For CPU Xeon E-21XXG/E-22XXG series only) Serial Port / Header 1 COM Port (1 header)TPM 1 TPM HeaderExpansion Slots PCI-E 1 PCI-E 3.0 x4,1 PCI-E 3.0 x1,2 PCI-Ex16 slots are running at NA/16, or 8/81 - 5V PCI 32bit M.2 M.2 Interface: 2 PCI-E 3.0 x4Form Factor: 2242/2260/2280/22110Key: M-Key M.2#1 are shared with PCI-Ex4 slot, M.2#2 is shared with U.2 System BIOS BIOS Type UEFI 128Mb Management Software AMT, SuperDoctor® 5, vPro, Watchdog System Management Software SuperDoctor 5 version. 5 Power Configurations ACPI Power ManagementATX Power connectorPower-on mode for AC power recoveryKeyboard Wakeup from Soft-Off PC Health Monitoring Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 5 -fan status, Chassis intrusion header, Chipset Voltage, Memory Voltages, VBAT FAN 5 fans with tachometer status monitoring Temperature N/A LED Standby alert LED Other Features 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, WOL Operating Environment Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F) Parts List ?Parts List (Bulk Package) Name Part Number Qty Description Motherboard MBD-X11SCA 1 X11SCA Motherboard SATA cable CBL-0044L 2 SATA 3 Cable IO shield MCP-260-00122-0N 1 X11SCA Series IO Shield M.2 SSD Holder MCP-450-00005-0B or MCP-450-00006-0B 2 M.2 SSD HolderParts List (Retail Package) Name Part Number Qty Description Motherboard MBD-X11SCA 1 X11SCA Motherboard SATA cable CBL-0044L 6 SATA 3 Cable IO shield MCP-260-00122-0N 1 X11SCA Series IO Shield M.2 SSD Holder MCP-450-00005-0B or MCP-450-00006-0B 2 M.2 SSD Holder Quick Reference Guide MNL-2087-QRG 1 X11SCA Series Quick Reference GuideOptional Parts List Name Part Number Qty Description TPM security module (optional, not included) AOM-TPM-9671V 1 TPM security module (optional, not included) AOM-TPM-9671V-C 1 TPM security module (optional, not included) AOM-TPM-9670V 1 TPM security module (optional, not included) AOM-TPM-9670V-C 1Chassis (Optimized for X11SCA)Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower SC732D4-500B SC732D4-903B SC732D3-1200B SCGS5A-753K SCGS5A-753B= Most optimized Chassis for SuperServer Configuration Blue color = Compatible Green color = Global SKU & Compatible Red dot & green color = Optimized + Global SKUServer (Optimized for X11SCA)Server NameSYS-5039C-T

Product SKUs MBD-X11SSM-F X11SSM-FPhysical Stats Form Factor Micro-ATX Dimensions 9.6" x 9.6" (24.38cm x 24.38cm) Processor/Cache CPU Intel® 7th/6th Generation Core i3 series, Intel® Celeron®, Intel® Pentium®, Intel® Xeon® processor E3-1200 v6/v5.Single Socket H4 (LGA 1151) supported, CPU TDP support 80W Note BIOS version 2.0 or above is required to support 7th Generation Intel® Core? i3 Processors and Intel® Xeon® Processor E3-1200 v6 series System Memory Memory Capacity 64GB Unbuffered ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots Memory Type 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs DIMM Sizes 4GB, 8GB, 16GB Memory Voltage 1.2V Error Detection Corrects single-bit errors On-Board Devices Chipset Intel® C236 SATA Intel® C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 IPMI ASPEED AST2400 BMC Network Controllers Dual LAN with Intel® Ethernet Controller I210-AT Graphics Aspeed AST2400 BMC Input / Output USB 6 USB 2.0 ports (2 rear + 4 headers)5 USB 3.0 ports (2 rear + 2 headers + 1 Type A) Video Output 1 VGA port Serial Port / Header 2 COM Ports (1 rear, 1 header)TPM TPM HeaderExpansion Slots PCI-E 1 PCI-E 3.0 x8 (in x16 slot),1 PCI-E 3.0 x8,2 PCI-E 3.0 x4 (in x8 slot) System BIOS BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS BIOS Features Plug and Play (PnP)APM 1.2DMI 2.3PCI 2.3ACPI 1.0 / 2.0 / 3.0 / 4.0USB Keyboard supportHardware BIOS Virus protectionSMBIOS 2.7.1UEFI 2.3.1 Management Software Intel® Node Manager, IPMI2.0, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog Power Configurations ACPI Power ManagementPower-on mode for AC power recovery PC Health Monitoring Voltage +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, VBAT FAN 5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI LED CPU / System Overheat LED, UID/Remote UID Other Features Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Node Manager Support, WOL Operating Environment Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Parts List ?Parts List (Bulk Package) Name Part Number Qty Description Motherboard MBD-X11SSM-F 1 X11SSM-F Motherboard I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF I/O Shield MCP-260-00042-0N 1 STD I/O Shield for X11SSM-F with EMI GasketParts List (Retail Package) Name Part Number Qty Description Motherboard MBD-X11SSM-F 1 X11SSM-F Motherboard QRG MNL-1785-QRG 1 Motherboard Quick Reference Guide I/O Cables CBL-0044L 6 57.5CM SATA FLAT S-S PBF I/O Shield MCP-260-00042-0N 1 STD I/O Shield for X11SSM-F with EMI GasketChassis (Optimized for X11SSM-F)Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower SC813MFTQC-505CB SC813MFTQ-R400CB SC813MTQ-350CB SC512L-200B SC512F-350B SC811TQ-441B SC113MFAC2-341CB SC113MFAC2-R606CB SC510-203B SC813MFTQC-350CB SC825TQ-R720LPB2U: SC213LT-600LPB2U: SC823TQ-653LPB SC825TQC-R802LPB 2U Heatsink:SNK-P0046A4 SC833T-653B 2U Heatsink:SNK-P0046A4 SC731i-403B SC732I-500B SC731i-300B SC732D3-1200B SC732D4-903B SC732i-865B SC733TQ-668B SC732D4F-903B 2U Heatsink:SNK-P0046A4 SC842i-500B SC842TQ-665B SC743AC-1200B-SQ SC745BAC-R1K28B2 2U Heatsink:SNK-P0046A4

Product SKUs MBD-X10DRT-P X10DRT-PPhysical Stats Form Factor Proprietary Twin Dimensions 6.8" x 18.86" (17.27cm x 47.9cm) Processor/Cache CPU Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4.Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W Cores / Cache Up to 22 cores † / Up to 55MB† cache Note † BIOS version 2.0 or above is required Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support. System Memory Memory Capacity 2TB 3DS ECC RDIMM, DDR4-2133MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots Memory Type 2400?/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit DIMM Sizes RDIMM: 4GB, 8GB, 16GB, 32GB, 64GBLRDIMM: 32GB, 64GB3DS LRDIMM: 128GB Memory Voltage 1.2V Error Detection Corrects single-bit errors On-Board Devices Chipset Intel® C612 SATA Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 AHCI SATA SATA3 (6Gbps); RAID 0, 1, 5, 10 SCU SATA SATA3 (6Gbps); RAID 0, 1, 5, 10 IPMI Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportASPEED AST2400 BMC Network Controllers Dual LAN with Intel® Ethernet Controller I350-AM2Single LAN with Virtual Machine Device Queues reduce I/O overheadSingle LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 outputSingle LAN with 1 Realtek RTL8211E PHY (dedicated IPMI) Graphics Aspeed AST2400 BMC Input / Output SATA 10 SATA3 (6Gbps) port LAN 2 RJ45 Gigabit Ethernet LAN ports1 RJ45 Dedicated IPMI LAN port USB 3 USB 3.0 ports (2 rear + 1 Type A) Video Output 1 VGA port TPM 1 TPM HeaderExpansion Slots PCI-E 1 PCI-E 3.0 x16,1 PCI-E 3.0 x8,1 PCI-E 3.0 x8 connector for SMC add-on cards,1 PCI-E 3.0 x16 connector for SMC add-on cards,(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram for details.)System BIOS BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS BIOS Features Plug and Play (PnP)PCI 2.3ACPI 1.0 / 2.0 / 3.0 / 4.0USB Keyboard supportSMBIOS 2.7.1UEFI 2.3.1 Management Software IPMI2.0, NMI, SuperDoctor® 5, Watchdog System Management Software SPM SUM SSM SuperDoctor 5 Power Configurations ACPI Power ManagementPower-on mode for AC power recovery PC Health Monitoring Voltage +12V, +3.3V, +5V, 3.3V standby, 6 Phase-switching voltage regulator, Memory Voltages, VBAT FAN 2x 4-pin fan headers (up to 2 fans), 4 fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Control for 4 Fan Connectors (2 fans on backplane), Thermal Monitor 2 (TM2) support, PECI LED CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID Other Features RoHS Operating Environment Operating Temperature Range 10°C - 35°C (50°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing)

Product SKUs MBD-X10DRW-NT X10DRW-NTPhysical Stats Form Factor Proprietary WIO Dimensions 12.3" x 13" (31.24cm x 33.02cm) Processor/Cache CPU Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4.Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W, 1 QPI up to 9.6GT/s Cores / Cache Up to 22 cores † / Up to 55MB† cache Note † BIOS version 2.0 or above is required Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support. System Memory Memory Capacity Up to 512GB Registered ECC RDIMM, DDR4-2400MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots Memory Type 2400?/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit DIMM Sizes RDIMM: 4GB, 8GB, 16GB, 32GBLRDIMM: 32GB, 64GB3DS LRDIMM: 128GB Memory Voltage 1.2V Error Detection Corrects single-bit errors On-Board Devices Chipset Intel® C612 SATA Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 AHCI SATA SATA3 (6Gbps); RAID 0, 1, 5, 10 SCU SATA SATA3 (6Gbps); RAID 0, 1, 5, 10 IPMI Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportASPEED AST2400 BMC Network Controllers Dual LAN with Intel® X540 10GBase-T Ethernet ControllerSingle LAN with Virtual Machine Device Queues reduce I/O overheadSingle LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 outputSingle LAN with 1 Realtek RTL8211E PHY (dedicated IPMI) Graphics Aspeed AST2400 BMC Input / Output SATA 10 SATA3 (6Gbps) port LAN 2 RJ45 10GBase-T ports1 RJ45 Dedicated IPMI LAN port USB 4 USB 2.0 ports (4 rear Type A))2 USB 3.0 ports (2 headers) Video Output 1 VGA port Serial Port / Header 1 COM Port (1 header)TPM 1 TPM HeaderExpansion Slots PCI-E 1 PCI-E 3.0 x32 Left Riser Slot System BIOS BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS BIOS Features Plug and Play (PnP)PCI 2.3ACPI 1.0 / 2.0 / 3.0 / 4.0USB Keyboard supportSMBIOS 2.7.1UEFI 2.3.1 Management Software Intel® Node Manager, IPMI2.0, NMI, SuperDoctor® 5, Watchdog Power Configurations ACPI Power ManagementPower-on mode for AC power recovery PC Health Monitoring Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 6 Phase-switching voltage regulator, Memory Voltages, VBAT FAN 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, PWM fan speed control, Status monitoring for speed control Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Control for 6 Fan Connectors, Thermal Monitor 2 (TM2) support, PECI LED CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID Other Features Chassis intrusion detection, Chassis intrusion header, RoHS, SDDC Operating Environment Operating Temperature Range 10°C - 35°C (50°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing)

Intel Xeon processor E3-1585 v5, Single socket FCBGA 1440, 4-Core, 8 Threads, 65W Intel® C236 chipset Up to 32GB ECC Unbuffered SO-DIMM DDR4 2133MHz; 2 DIMM slots 1 PCI-E 3.0 x16, 1 Mini-PCIe (mSATA support), 1 M.2 PCIe 3.0 x4 (SATA support), M Key 2242/80 4x 1GbE LAN w/ Intel I219LM, I210AT, I350AM2 1 DVI-A, Graphics from AST2400 4 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 2 SATA DOM, 1 COM (in RJ45),TPM header, ALC 888S HD Audio Integrated IPMI 2.0 and KVM with Shared LAN (Intel I210AT) Supports Intel VHD and 12V DC power input

Product SKUs MBD-X13SAQ Physical Stats Form Factor Micro-ATX Dimension 9.6" x 9.6" (24.38cm x 24.38cm) Processor CPU 14th/13th/ 12th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor Single Socket V0 supported Core Up to 24 cores System Memory Memory Capacity 4 DIMM slots Up to 128GB Unbuffered non-ECC UDIMM, DDR5-4400MT/s *Supports up to 128GB of DDR5 UDIMM with speeds of up to 4400MT/s with one DIMM, or 4000MT/s with two DIMM single rank, or 3600MT/s with two DIMM dual rank in four memory slots Memory Type 4400/4000/3600 MT/s DIMM Sizes 4GB, 8GB, 16GB, 32GB Memory Voltage 1.1V On-Board Devices Chipset Intel Q670E SATA Intel Q670E controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Audio ALC 888S HD Audio Network Controllers Dual LAN with Intel® Ethernet i225LM Input / Output SATA 8 SATA3 (6Gbps) port(s) USB 4 USB 2 port(s) (2 via header; 2 rear type A) 4 USB 3.2 Gen2 port(s) (2 via header; 2 rear type A) 2 USB 3.2 Gen1 port(s) (2 via header) 2 USB 3.2 Gen2x2 port(s) (2 rear type C) Video Output 1 VGA port(s), 1 DVI - D port(s), 1 DP 1.4a port(s), 1 HDMI 2.0b port(s) Serial Port 6 COM Port(s) (2 header; 4 header) TPM TPM TPM 2.0 onboard Expansion Slots PCIe 1 PCIe 5.0 x16, 1 PCIe 4.0 x4 (in x8 slot), 1 PCIe 3.0 x4, 1 PCIe 3.0 x2 (in x4 slot), 1 PCIe 4.0 x4 SlimSAS System BIOS BIOS Type AMI UEFI BIOS Features ACPI 6.1 SMBIOS 3.0 or later PCI FW 3.0 UEFI 2.7 RTC (Real Time Clock) Wakeup Management Software Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), SuperServer Automation Assistant (SAA) New! System Management Software Wake-on-LAN, Watchdog Power Configurations ACPI Power Management, ATX Power connector PC Health Monitoring Voltage VBAT, 4 fans with tachometer monitoring, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, +1.5V, +1.35V LED Power LED Temperature Monitoring for CPU and chassis environment CPU thermal trip support Other Features RoHS M.2 NGFF connector Chassis intrusion detection ATX Power connector ACPI power management FAN 4x 4-pin fan headers (up to 4 fans) Operating Environment Operating Temperature Range 0°C - 60°C (32°F - 140°F) Non-Operating Temperature Range -40°C - 85°C (-40°F - 185°F) Operating Relative Humidity Range 10% - 85% (non-condensing) Non Operating Relative Humidity Range 5% - 95% (non-condensing)
