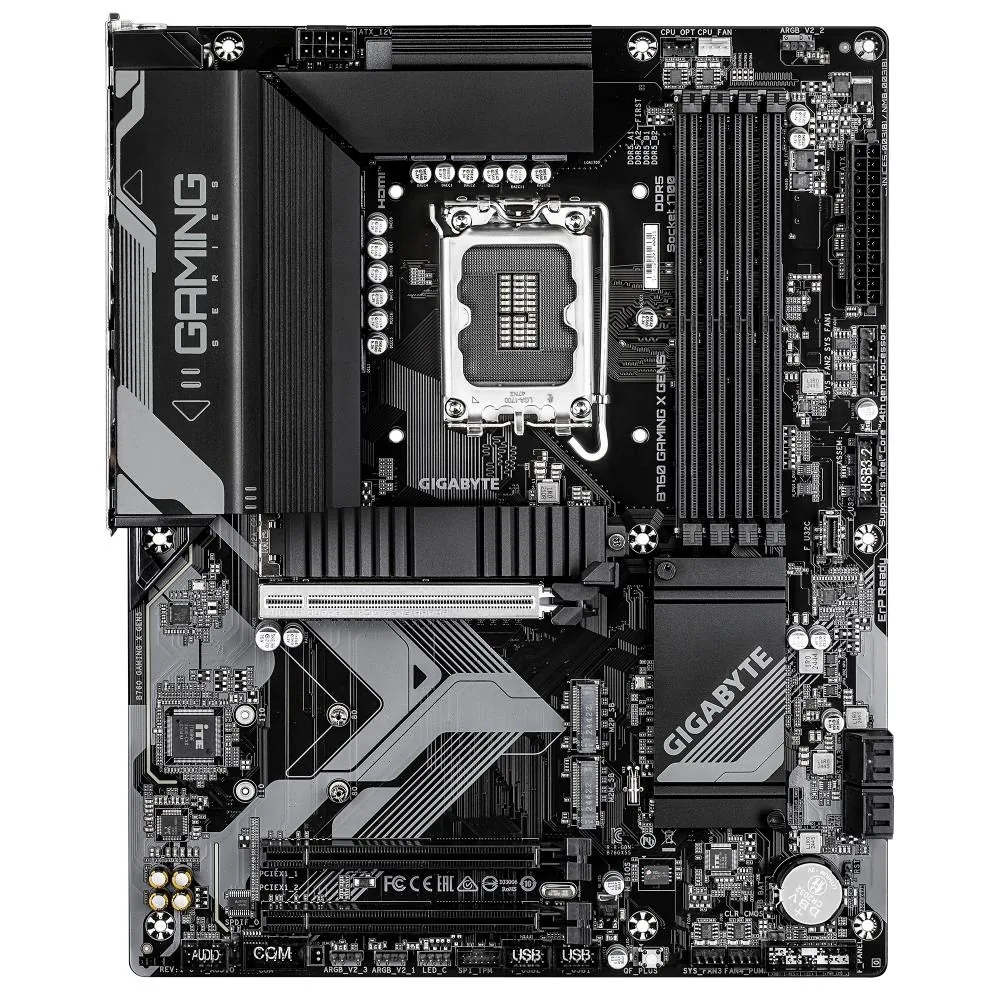

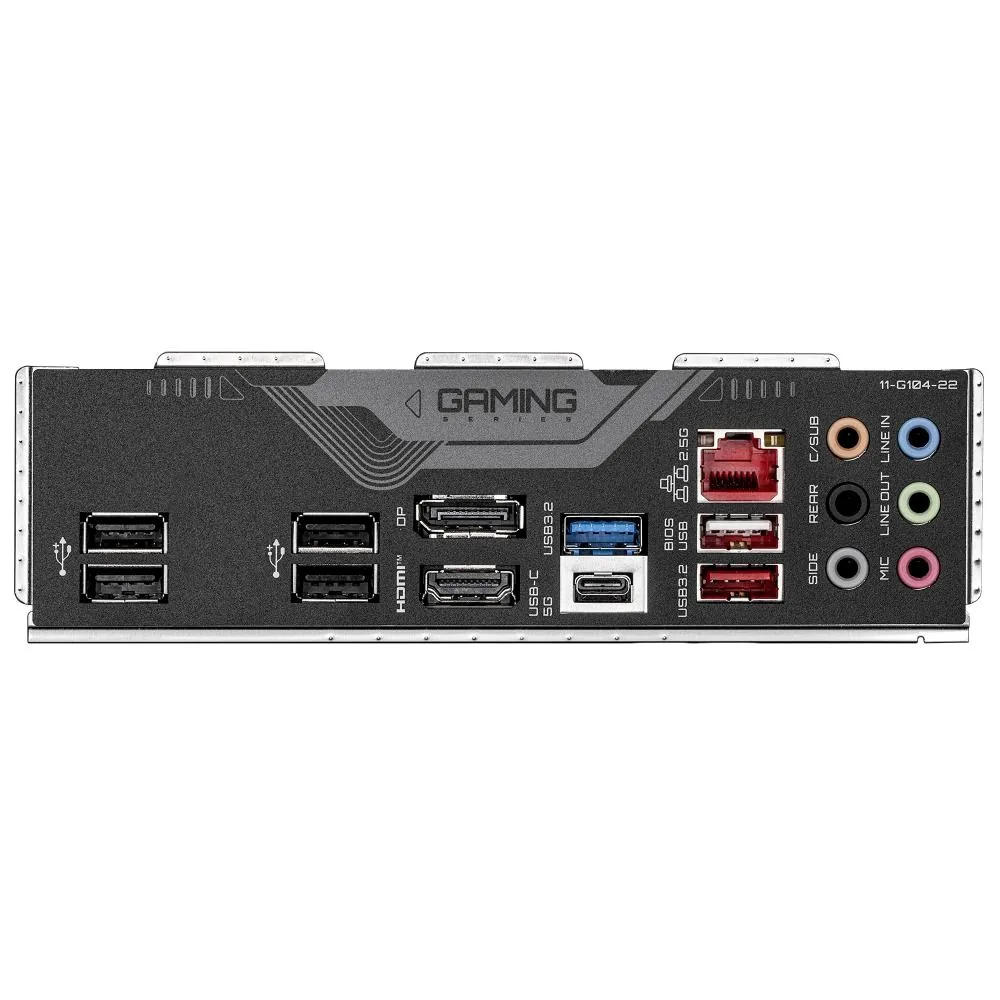

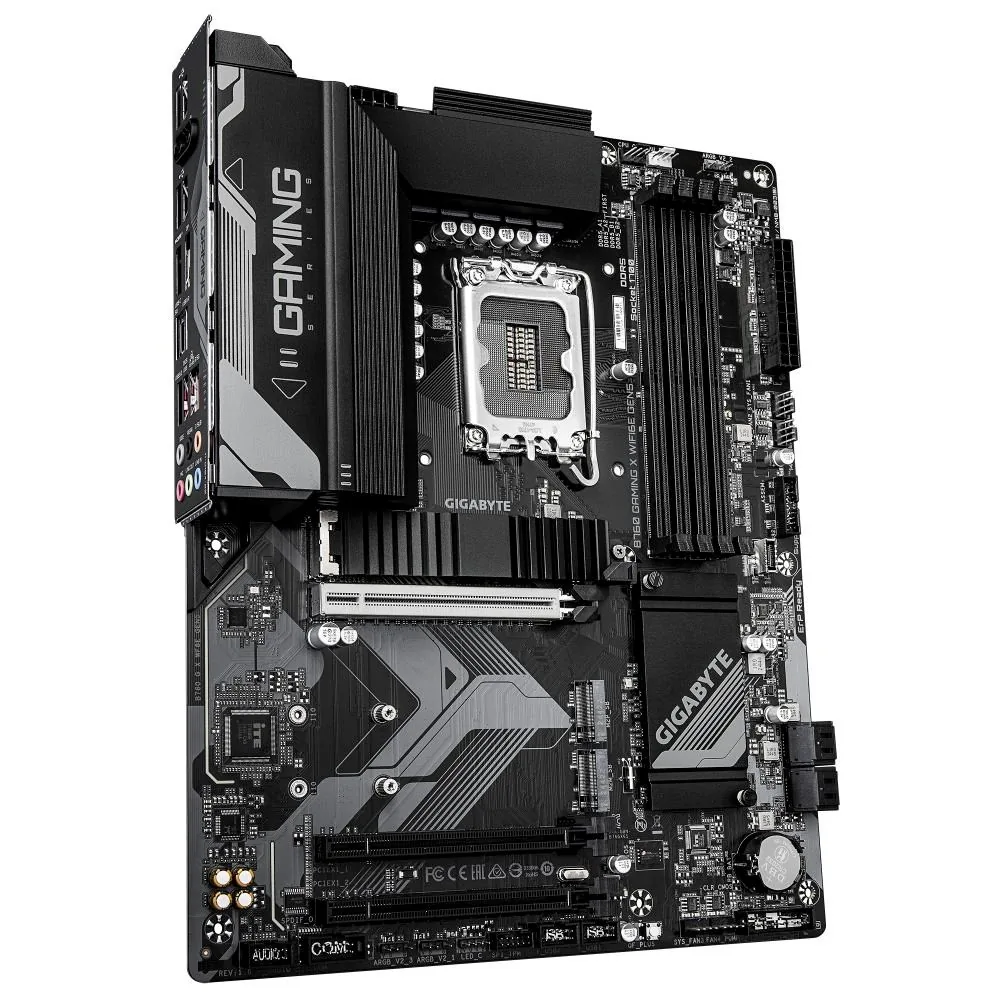

GIGABYTE B760 GAMING X GEN5PCIe Gen5 Performance : Perfect Sync to WinSupports Intel Core™ 14th 13th 12 processorsEfficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal GuardEZ-Latch : PCIe 5.0x16 Slot with Quick Release DesignPCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card supportUnparalleled Performance : Hybrid 8+1+1 Phases VRM SolutionDual Channel DDR5 : 4*DIMMs with XMP Memory Module SupportFast Networks : 2.5GbE LANExtended Connectivity : Front USB-C 10Gb s, DP, HDMINext Generation Storage : 3*PCIe 4.0 x4 M.2 ConnectorsSmart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOPQ-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics CardCPULGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core™,Pentium Gold and Celeron Processors(Go to GIGABYTE's website for the latest CPU support list.)?L3 cache varies with CPUChipsetIntel B760 Express ChipsetMemory14th and 13th Generation Intel Core™ i9 i7 Processors:- Support for DDR5 5600 5200 4800 4400 MT s memory modules13th Generation Intel Core™ i5 i3 and 12th Generation Intel Core™, Pentium Gold and Celeron Processors:- Support for DDR5 4800 4400 MT s memory modules4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8 2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8 2Rx8 1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)Onboard GraphicsIntegrated Graphics Processor-Intel HD Graphics support:- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz* Support for DisplayPort 1.2 version and HDCP 2.3- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support for native HDMI 2.1 TMDS compatible ports.(Graphics specifications may vary depending on CPU support.)AudioRealtek Audio CODECHigh Definition Audio2 4 5.1 7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S PDIF OutLANRealtek 2.5GbE LAN chip (2.5 Gbps 1 Gbps 100 Mbps)Expansion SlotsCPU:- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)Storage InterfaceCPU:- 1 x M.2 connector (Socket 3, M key, type 22110 2280 PCIe 4.0 x4 x2 SSD support) (M2A_CPU)Chipset:- 2 x M.2 connectors (Socket 3, M key, type 22110 2280 PCIe 4.0 x4 x2 SSD support) (M2P_SB, M2M_SB)- 4 x SATA 6Gb s connectors?RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devicesUSBChipset:- 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)- 1 x USB 2.0 1.1 port on the back panelChipset+2 USB 2.0 Hubs:- 8 x USB 2.0 1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)Internal I O Connectors1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x CPU fan water cooling pump header3 x system fan headers1 x system fan water cooling pump header3 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header3 x M.2 Socket 3 connectors4 x SATA 6Gb s connectors1 x front panel header1 x front panel audio header1 x S PDIF Out header1 x USB Type-C header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header2 x USB 2.0 1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI GC-TPM2.0 SPI 2.0 GC-TPM2.0 SPI V2 module only)1 x serial port header1 x Q-Flash Plus button1 x reset jumper1 x Clear CMOS jumperBack Panel I O Connectors1 x USB 3.2 Gen 2 Type-A port (red)1 x USB Type-C port, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 port5 x USB 2.0 1.1 ports2 x antenna connectors (2T2R)1 x DisplayPort (Note)1 x HDMI port (Note)1 x RJ-45 port6 x audio jacks(Note) Actual support may vary by CPU.I O ControlleriTE I O Controller ChipH W MonitoringVoltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.BIOS1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique FeaturesSupport for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusSupport for Smart BackupBundled SoftwareNorton Internet Security (OEM version)Operating SystemSupport for Windows 11 64-bitSupport for Windows 10 64-bitForm FactorATX Form Factor; 30.5cm x 24.4cm
