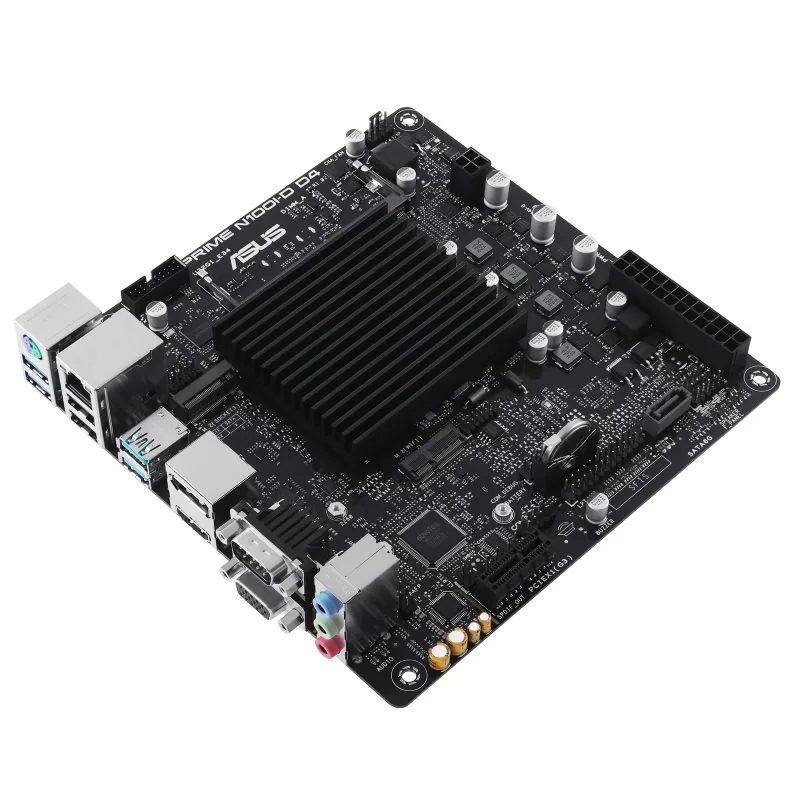

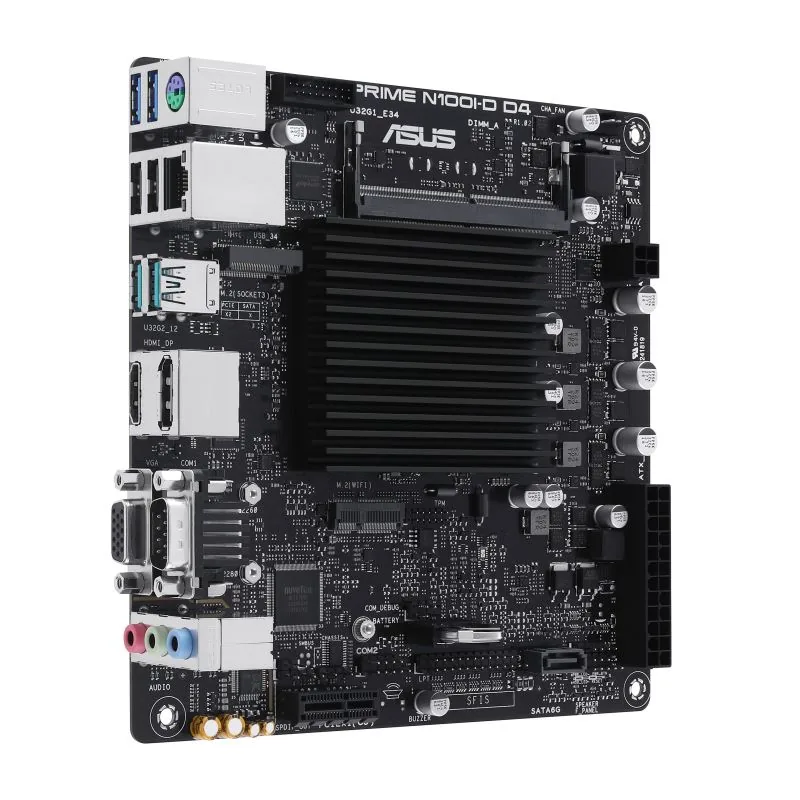

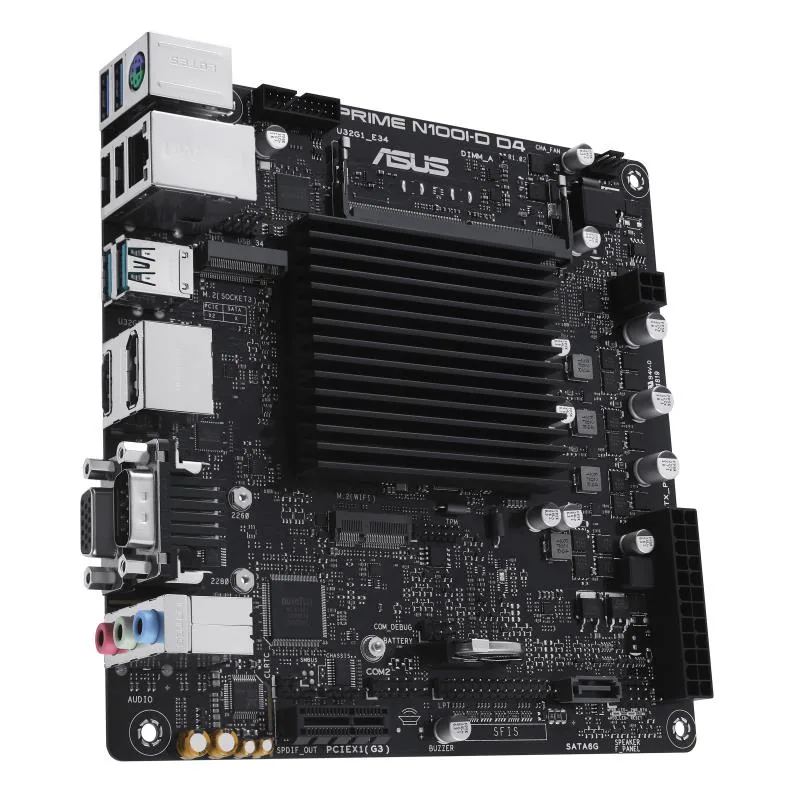

ASUS PRIME N100I-D D4-CSMLow-power, fan-less motherboard for Intel Processor N100, with PCIe 3.0, DisplayPort HDMI™ VGA, USB 3.2 Gen 2 port, M.2 WIFI slot, SATA 6 Gbps, LPT header, COM Port, COM Header, Q-LED CoreUltrafast Connectivity: PCIe 3.0 x1 slot, 16Gbps M.2 support, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 and 1Gb EthernetBetter serviceability: COM debug header to facilitate building and support processesASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protectionCPUOnboard Intel Processor N100Supports Intel Turbo Boost Technology 2.0Memory1 x SO-DIMM, Max. 16GB, DDR4 3200 2933 2800 2666 2400 2133 Non-ECC, Un-buffered Memory** We recommend that you use 16GB or less memory module.* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU Memory Support list under the Support tab of product information site or visit https: www.asus.com support Graphics1 x DisplayPort**1 x VGA port1 x HDMITM port*** *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.**Supports max. 4K@60Hz as specified in DisplayPort 1.4.***Supports 4K@60Hz as specified in HDMITM 2.1.Expansion Slots1 x PCIe 3.0 x1 slot- To ensure compatibility of the device installed, please refer to https: www.asus.com support for the list of supported peripherals.StorageTotal supports 1 x M.2 slot and 1 x SATA 6Gb s port1 x M.2 Socket 3 with M key, type 2260 2280 (supports PCIe 3.0 x 2 mode)1 x SATA 6Gb s portEthernet1 x Realtek 1Gb EthernetASUS LANGuardWireless & BluetoothM.2 slot only (Key E, CNVi & PCIe)** Wi-Fi module is sold separately.USBRear USB (Total 6 ports)2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A)2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)*2 x USB 2.0 ports (2 x Type-A)Front USB (Total 4 ports)1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports*1 x USB 2.0 header supports 2 additional USB 2.0 ports* U32G1_E1 port, U32G1_E2 port, U32G1_E3 port and U32G1_E4 port share the bandwidth.AudioRealtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-Recording, Front Panel Jack-retasking- Supports up to 24-Bit 192 kHz playback"Audio Features- Audio Shielding- Premium audio capacitors* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.Back Panel I O Ports2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A)2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x DisplayPort1 x VGA port1 x HDMITM Port1 x COM port1 x Realtek 1Gb Ethernet port3 x Audio jacks1 x PS 2 Keyboard Mouse combo portInternal I O ConnectorsFan and cooling related1 x 4-pin Chassis Fan headerPower related1 x 24-pin Main Power connector1 x 4-pin +12V Power connectorStorage related1 x M.2 slot (Key M)1 x SATA 6Gb s portUSB1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports1 x USB 2.0 header supports 2 additional USB 2.0 portsMiscellaneous1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x M.2 slot (Key E)1 x Chassis Intrude header1 x LPT header1 x S PDIF out header1 x SPI TPM header (14-1pin)1 x Speaker Header1 x System Panel connectorSpecial FeaturesProven Quality- ESD Guards- LANGuard- Overvoltage Protection- Stainless-Steel Back I OASUS Q-Design- Q-LED CoreASUS Thermal Solution- CPU heatsink designSoftware FeaturesASUS Exclusive SoftwareASUS CPU-ZNorton 360 Deluxe (60 Days Free Trial)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3BIOS128 Mb Flash ROM, UEFI AMI BIOSManageabilityWOL by PME, PXEAccessoriesCables2 x SATA 6Gb s cablesMiscellaneous1 x I O Shield1 x Screw package for M.2 SSD1 x Screw package for M.2 Key EDocumentation1 x User guide1 x ACC Express Activation Key CardOperating SystemWindows 11(Version 22'H2 and later), Windows 10 64-bitForm FactorMini-ITX Form Factor 17cm x 17cm
