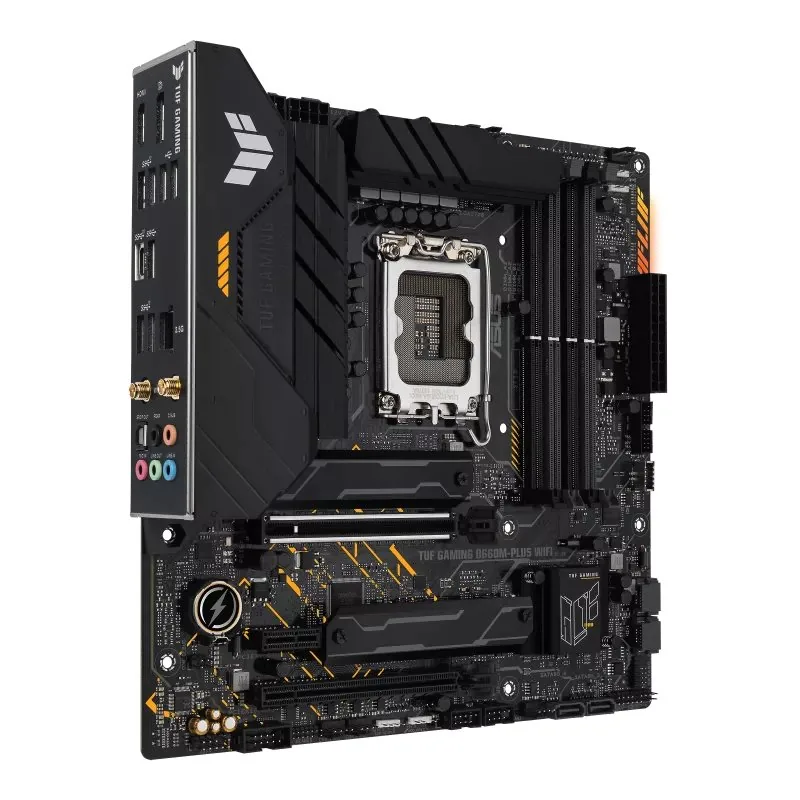

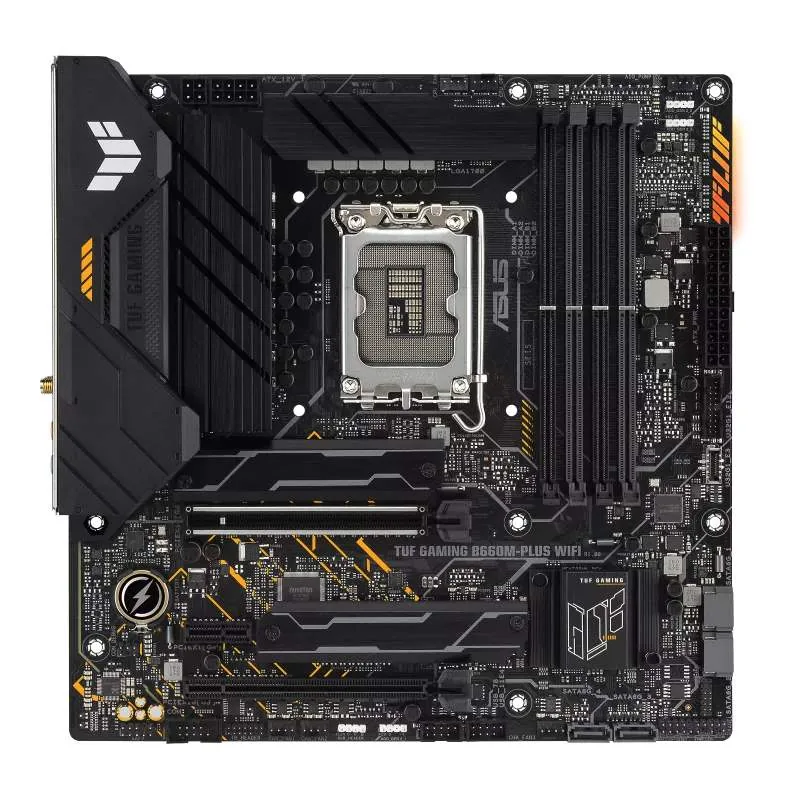

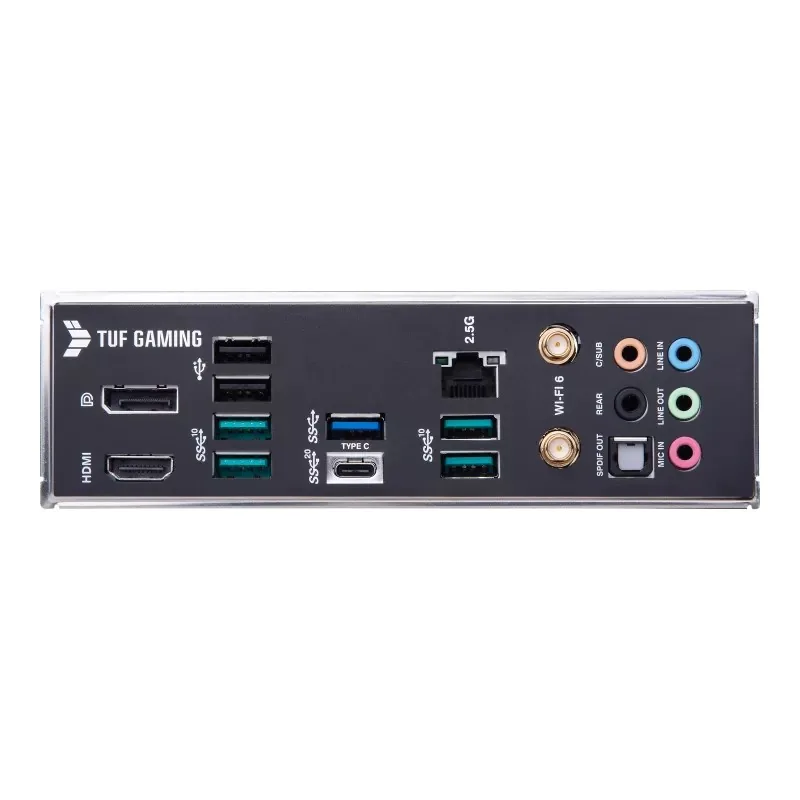

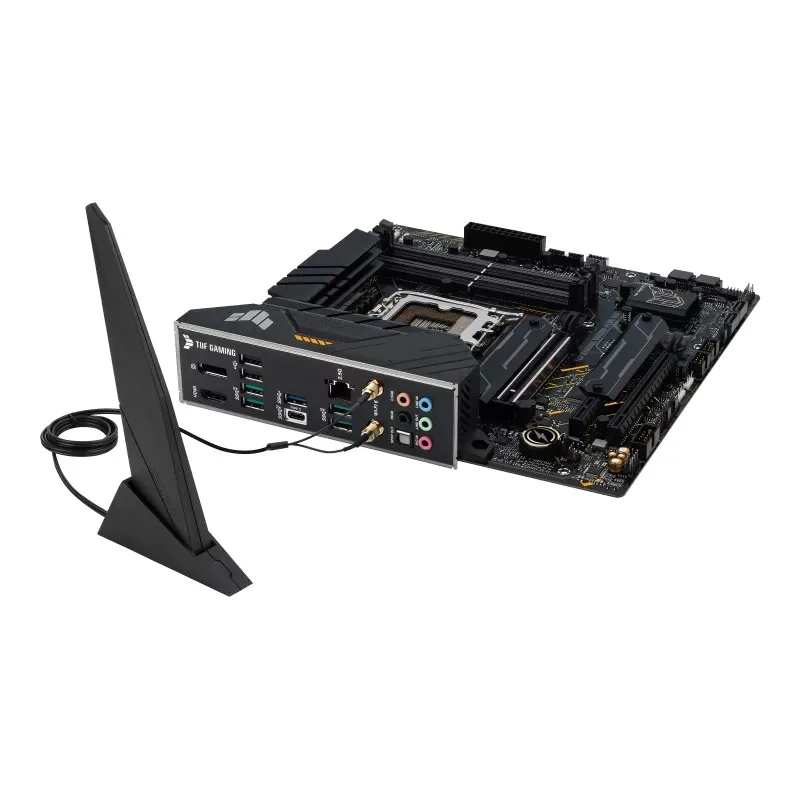

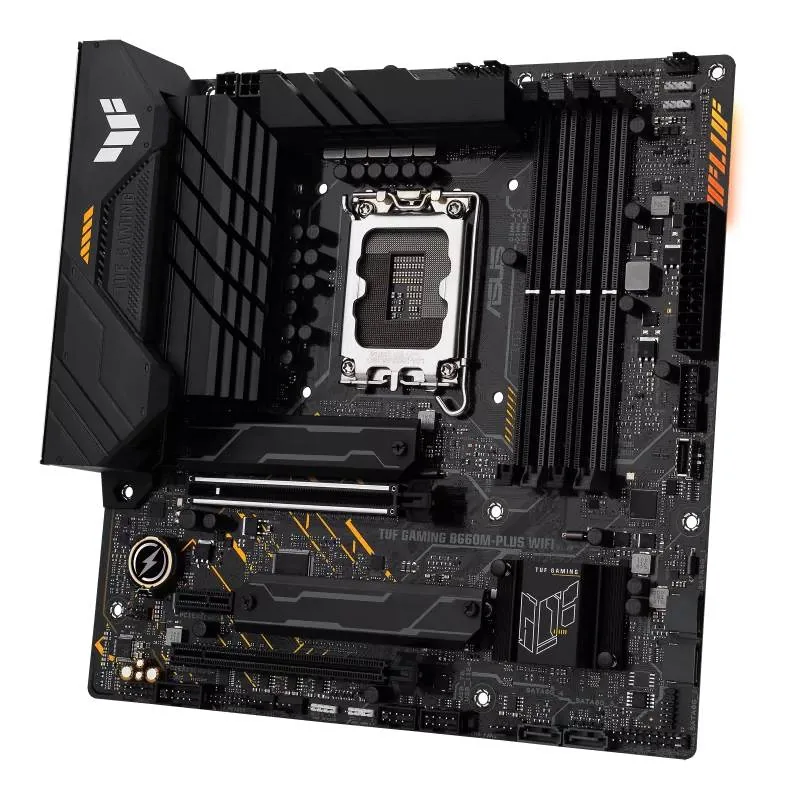

ASUS MB TUF GAMING B660M-PLUS WiFiIntel B660 (LGA 1700) mATX motherboard, 10+1 DrMOS Power stages , PCIe 5.0 support, DDR5 6000(OC), Dual PCIe 4.0 M.2 Slots with Heatsinks, Intel Wi-Fi 6, Realtek 2.5Gb Ethernet, Rear USB 3.2 Gen 2x2 Type-C, Front USB 3.2 Gen 1 Type-C, Aura Sync, Two-way AI Noise CancelationIntel LGA 1700 socket: Ready for 13th & 12th Gen Intel Core™ processors Enhanced power solution: 10+1 DrMOS power stages, six-layer PCB, 8+4 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability Comprehensive cooling: Enlarged VRM heatsink, Stack Cool 3+, M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+ Latest connectivity: PCIe 5.0 slot, DDR5 memory, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2x2 Type-C, front panel header for USB 3.2 Gen 1 Type-C and Thunderbolt 4™ support Made for online gaming: Intel WiFi 6, Realtek 2.5Gb Ethernet, TUF LANGuard Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferencesCPUIntel Socket LGA1700 for 12th Gen Intel Core™, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.ChipsetIntel B660 ChipsetMemory4 x DIMM, Max. 128GB, DDR5 6000(OC) 5800(OC) 5600(OC) 5400(OC) 5200(OC) 5000(OC) 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II *Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.Graphics1 x DisplayPort** 1 x HDMI port*** *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' resolution.Expansion SlotsIntel 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel B660 Chipset* 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot * Supports Intel Optane Memory H Series on PCH-attached PCIe slot.Ethernet1 x Realtek 2.5Gb Ethernet TUF LANGuardWireless & BluetoothWi-Fi 6 2x2 Wi-Fi 6 (802.11 a b g n ac ax) Supports 2.4 5GHz frequency band Bluetooth v5.2* *Bluetooth v5.2 function will be ready in Windows 11 or later. USBRear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 portsAudio Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit 192 kHz playback Audio Features - Audio Shielding - Power pre-regulator reduces power input noise to ensure consistent performance - Rear optical S PDIF out port - Premium audio capacitors - Dedicated audio PCB layersBack Panel I O Ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S PDIF out portInternal I O ConnectorsFan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ headerSpecial FeaturesASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - VRM heatsink design - M.2 heatsinks ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I O shield - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headersSoftware FeaturesASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM TUF GAMING CPU-Z DTS Audio Processing MyASUS Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ ModeBIOS128 Mb Flash ROM, UEFI AMI BIOSManageabilityWOL by PME, PXEAccessories Cables 2 x SATA 6Gb s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x M.2 Rubber Package 1 x M.2 SSD screw package 1 x TUF Gaming sticker Installation Media 1 x Support DVD Documentation 1 x TUF Certification card 1 x User guideOperating SystemWindows 11 64-bit, Windows 10 64-bitForm FactormATX Form Factor 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
